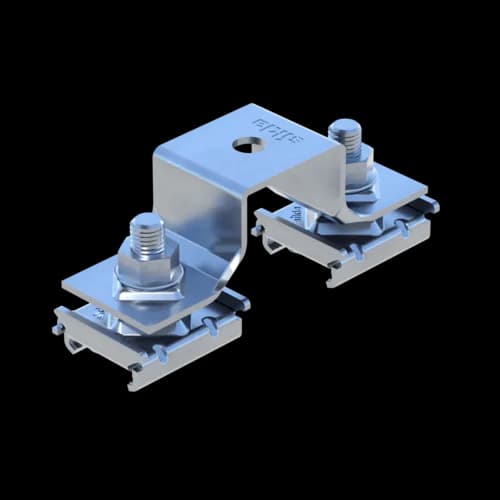

Profile Holder MPH PRO 46- 41 HCP
Group: B106
Implementation of a cross-connection between the siMetrix PRO 46 profile and the Sikla Channel with a rail width of 41 mm
Overview of Types
General Information
Implementation of a cross-connection between the siMetrix PRO 46 profile and the Sikla Channel with a rail width of 41 mm.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
MPH PRO 46 - 41 HCP | 0,27 kN | 0,27 kN | 0,78 kN | 0,78 kN | 5,72 kN | 5,72 kN |
Type | -MY,perm. | MY,perm. | -MZ,perm. | MZ,perm. |
MPH PRO 46 - 41 HCP | 0,06 kNm | 0,06 kNm | 0,22 kNm | 0,22 kNm |
Software
This product is available in the following software.
Installation

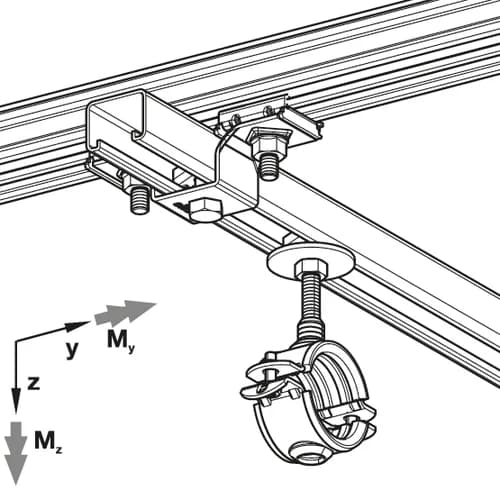

The cross connection of the Channel MS 41 to the Profile PRO 46 is made on both sides with the block PBH 46.
