Round Rod Coupling AD IG/IG HCP
Group: 1832
Connection element to extend threaded rods for suspension heights of more than 3 metres
Slot for visual check of screw depth of both ends
Overview of Types
General Information

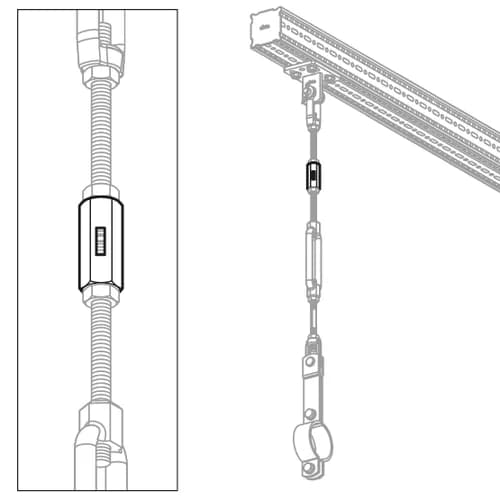

Connection element to extend threaded rods for suspension heights of Sikla Load Chains of more than 3 meters effective length of thread. With slot for visual check of screw depth of both ends of the threaded rods. The HCP-surface of the Rod Coupling in combination with other HCP-components guarantees a consistent corrosion protection for all individual parts. During assembly the Rod Coupling has to be locked with two hexagon nuts (not included in scope of delivery).
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VZ,perm. |
AD IG/IG M10 X 30 HCP | 18,60 kN |
AD IG/IG M12 X 35 HCP | 27,00 kN |
AD IG/IG M16 X 40 HCP | 39,20 kN |
Software
This product is available in the following software.
Installation
During assembly the Rod Coupling has to be locked with two hexagon nuts (not included in scope of delivery).
