Slide Set GS H3G-PL 46 HCP
Group: B111

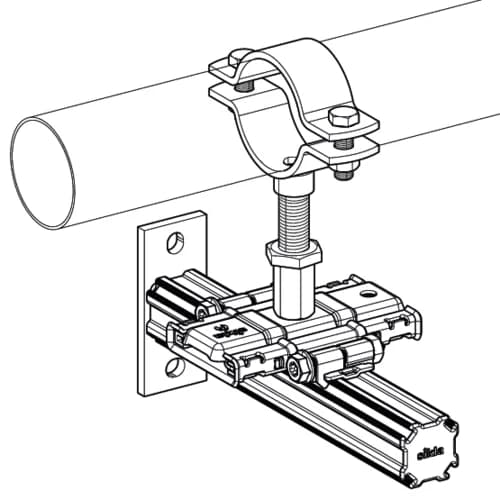

Slide set for single and double guided brackets on siMetrix Profile PRO 46 or direct mounting to the structure
Connection options vary by load, using 3G thread: M10, M16 and 1/2'
Overview of Types
General Information
Slide Set for single and double guided brackets on siMetrix Profile PRO 46, or directly to the structure. Connection options vary on the load, using either the 3G thread: M10, M16 and 1/2'.
Certification
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,7 |
Static Friction μ0 | 0,7 |
Material base body | steel |
Material sliding element | PA GF, MoS2-coated |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
GS H3G-PL 46 HCP | 4,51 kN | 4,51 kN | 3,45 kN | 11,03 kN |
GS H3G2-PL 46 HCP | 4,51 kN | 4,51 kN | 3,45 kN | 11,03 kN |
Type | -MX,perm. | MX,perm. |
GS H3G-PL 46 HCP | 0,13 kNm | 0,13 kNm |
GS H3G2-PL 46 HCP | 0,13 kNm | 0,13 kNm |
Software
This product is available in the following software.
Installation
For supported installations from DN 100 upwards, a locking nut must be mounted on the 3G triple thread nut for both Slide Sets.
Tightening torque siMetrix screws: 15 Nm
