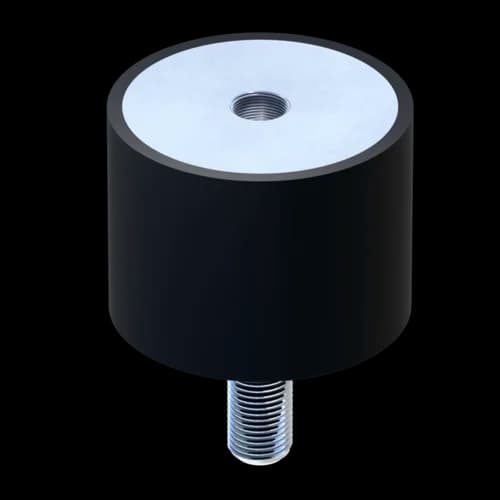

Acoustic Absorption Element AKE 41 AG/IG
Group: 1399
Universally applicable sound absorption element for higher loads
Suitable for soundproof installation according to DIN 4109
Ideal for sound isolation of constructions made of Channels 41 or electrical equipment such as pumps or ventilators
Overview of Types
General Information
Universally applicable sound absorption element for higher loads. Suitable for soundproof installation according to DIN 4109. Especially suitable for sound isolation of constructions made of Channels 41 or electrical equipment, e.g. pumps or ventilators.
Certification
Technical specifications
Spring deflection min. | 0,5 mm |
Spring deflection max. | 2,6 mm |
Hardness | 45 +/-5° Shore |
Material base body | steel |
Material insulation body | caoutchouc |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | VZ,perm. |
AKE 41 AG/IG M 8 | 0,70 kN |
Software
This product is available in the following software.
Installation

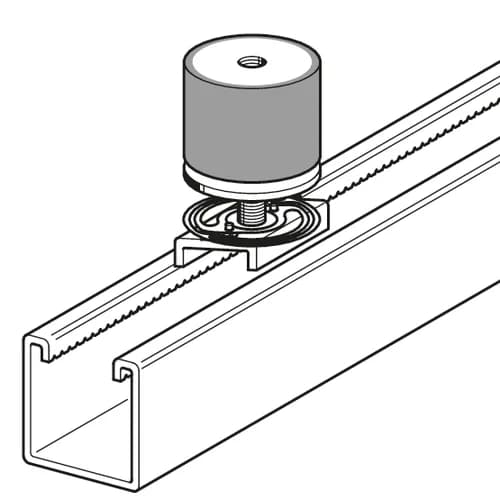

Assembly in Channel 41 by means of Washer 8/40 and Speed Nut M8. The Acoustics Element is designed for pressure loads. Installation with dominant tensile loading or shear stress has to be avoided.
For these exceptional cases the load pressure has to be reduced to 1/3.
