Assembly Group BG14 F 80 M10 HCP
Group: 1102

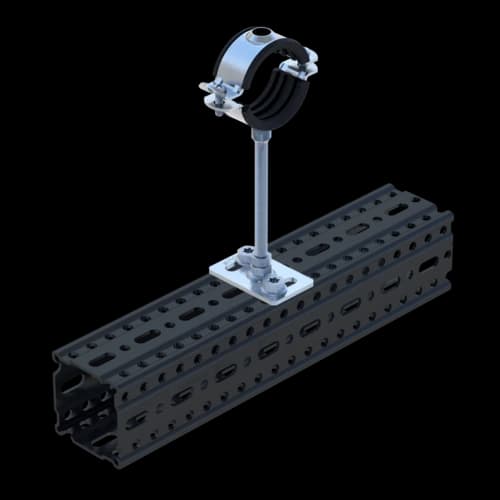

Contains components for a permanent pipe connection with pipe clamp Stabil D-3G
Designed for use with Beam Section TP F 80, connected via Self Forming Screw FLS F
Height adjustment via Threaded Rod M10, sound absorption according to DIN 4109
Overview of Types
General Information

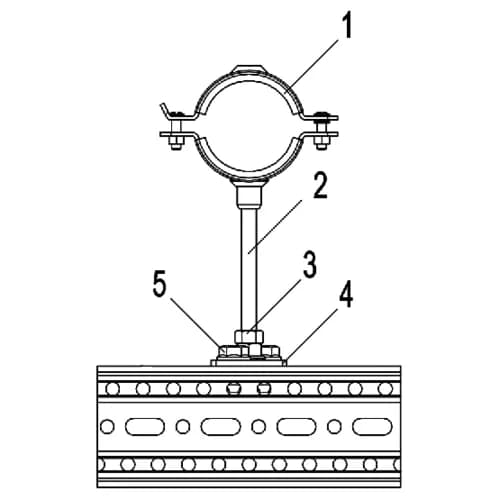

An Assembly Group containing components to make up a permanent pipe connection with the pipe clamp Stabil D-3G. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Rod M10. The pipe clamp with sound absorption lining ensures sound absorption in accordance with DIN 4109.
Certification
Technical specifications
Material base body | steel |
Material insulation body | SBR/EPDM |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Installation
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
L(max, horizontal) = not recommended
