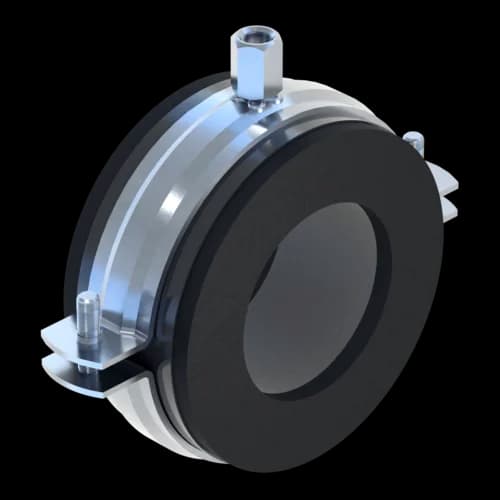

Chilled Water Clamp LKS 19

Group: 1255

Secure prevention of condensation water at the pipe support location of refrigeration and cold-water pipelines

Diffusion-tight connection through secure end-face sealing with commercially available insulation materials.

Recommended up to -0°C at normal ambient condition.

Select a Type

Overview of Types
General Information
Installation

Overview of Types

General Information

Suitable for secure prevention of condensation water at the pipe support location of refrigeration and cold-water pipelines. An optimal diffusion-tight connection with the pipe insulation is easily and safely achieved by fixing usual insulation materials to the clamp faces using adhesive. Recommended up to -0°C at normal ambient condition.

Certification

Technical specifications

Max. temperature	105 °C
Min. temperature	-40 °C

Thermal Conductivity λ {0°C}	λ = 0,024 - 0,026 W/mK
Thermal Conductivity λ {10°C}	λ = 0,038 W/mK
Thermal Conductivity λ {40°C}	λ = 0,040 W/mK

Fire Performance

EL according to DIN EN 13501-1

Insertion Isolation

18 dB(A)

Bulk Density	80,00 kg/m³
Halogen-free	Yes
Water vapour diffusion resistance factor	µ 7000
Storage Temperature	≥ 10°C
Storage Time	1 year

Material base body	steel
Material insulation body	PUR, ALU, EPDM
Material connecting element	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Load range

Type	-V_Z,perm.
LKS 19- 15	0,35 kN
LKS 19- 16	0,40 kN
LKS 19- 18	0,45 kN
LKS 19- 20	0,50 kN
LKS 19- 22	0,55 kN
LKS 19- 25	0,60 kN
LKS 19- 26	0,60 kN
LKS 19- 28	0,60 kN
LKS 19- 30	0,60 kN
LKS 19- 32	0,60 kN
LKS 19- 35	0,60 kN
LKS 19- 38	0,60 kN
LKS 19- 40	0,60 kN
LKS 19- 42	0,60 kN
LKS 19- 44	0,60 kN
LKS 19- 48	0,60 kN
LKS 19- 50	1,10 kN
LKS 19- 54	1,15 kN
LKS 19- 57	1,15 kN
LKS 19- 60	1,20 kN
LKS 19- 64	1,25 kN
LKS 19- 70	1,30 kN
LKS 19- 76	1,40 kN
LKS 19- 80	1,45 kN
LKS 19- 89	1,55 kN
LKS 19-102	1,70 kN
LKS 19-108	1,80 kN
LKS 19-110	1,80 kN
LKS 19-114	1,85 kN
LKS 19-125	2,00 kN
LKS 19-133	2,10 kN
LKS 19-139	3,50 kN
LKS 19-160	3,85 kN
LKS 19-168	4,05 kN
LKS 19-180	4,25 kN
LKS 19-200	4,65 kN
LKS 19-219	5,05 kN
LKS 19-225	5,15 kN
LKS 19-250	5,65 kN
LKS 19-273	6,10 kN

Software

This product is available in the following software.

Installation

The tightening torque is 2 Nm for all sizes.

For types up to 168, the maximum support spans specified in DIN 1988 may be used.

The installation instructions in DIN 4140 must be observed (any gaps must be sealed).

Type	Nominal thickness [mm]	Size	Length PUR element [mm]
LKS 19	19	15 - 89	50
LKS 19	19	102 - 273	100
