STA F 80-E 45
End Support STA-E F 80 45° HCP
Group: A422
End Support STA F80-E 45° designed to create a 45° bracing element in combination with F80 beam sections or F80 Cantilever Brackets
Overview of Types
General Information
The End Support STA F80-E 45° is designed to generate a 45° bracing element in combination with F80 beam sections or F80 Cantilever Brackets.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Software
This product is available in the following software.
Installation

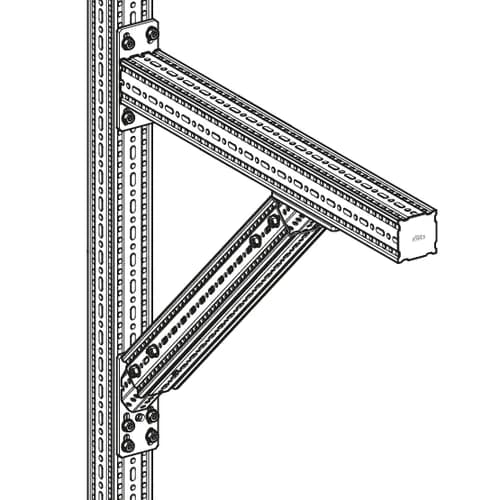

Depending on the situation on site there are two options to use this product:
a) Connection within the siFramo system by connecting with 4 FLS screws to each beam section F80.
b) Connection to building fabric by using 2 suitable wall anchors in diagonal configuration.

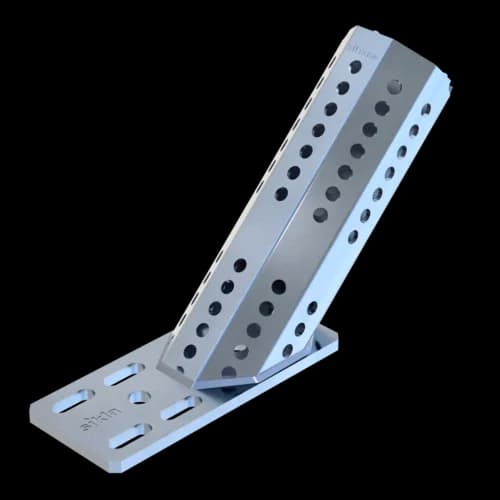

Configuration: Base plate welded to Octagon F 80
Documents
- siFramo - ETA-24/0471
PDF (2.15MB)
