STA F 80-E 45
End Support STA-E F 80 45° HCP
Group: A422
Part number 406001

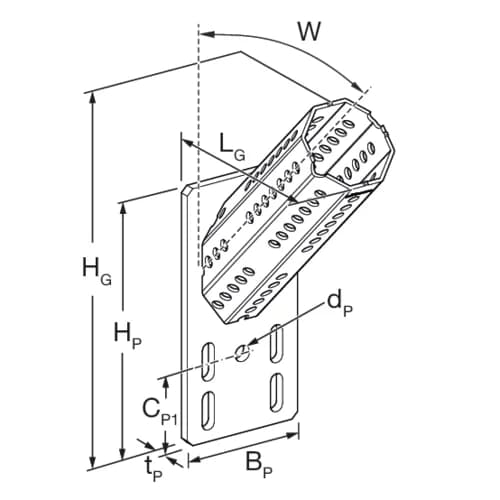

End Support STA F80-E 45° designed to create a 45° bracing element in combination with F80 beam sections or F80 Cantilever Brackets
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
STA F 80-E 45
Group: A422
Part number 406001
End Support STA F80-E 45° designed to create a 45° bracing element in combination with F80 beam sections or F80 Cantilever Brackets
siFramo - ETA-24/0471
PDF (2.15 MB)
BP | 80 mm |
CP1 | 65 mm |
dP | 14 mm |
HG | 307,5 mm |
HP | 190 mm |
LG | 181 mm |
tP | 8 mm |
W | 45° |
The specified load values are design loads Rd and include a partial safety factor γM2 = 1.25 (DIN EN 1993-1-8:2025-04, Table 4.1)
A partial safety factor of γG = 1.35 (DIN EN 1990:2021-10, Table A1.2(B)) must be taken into account for permanent loads.
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.
Depending on the situation on site there are two options to use this product:
a) Connection within the siFramo system by connecting with 4 FLS screws to each beam section F80.
b) Connection to building fabric by using 2 suitable wall anchors in diagonal configuration.
Configuration: Base plate welded to Octagon F 80
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
