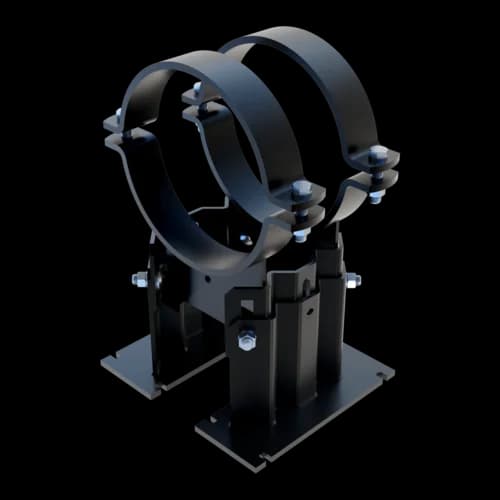

High Temperature Pipe Shoe LD-HT-HV 200
Group: A767
Double-clamp, dual base Pipe Shoe, height-adjustment in steps of 2.5mm, delivery height of 200mm- suitable for sliding pipe supports
Designed for use in temperatures up to 500°C, with material-dependent correction factors for load determination in accordance with DIN EN 13480-3.
Suitable for steel beams, with a minimum flange width of 80 mm and flexible in combination with other Sikla components to create guide or fixed points.
Overview of Types
General Information
Height-adjustable, double-clamp pipe shoe with two bars and a delivery height of 200 mm. Height adjustment in steps of 2.5 mm. When resting on steel beams, a minimum flange width of 80 mm is recommended. These pipe shoes are designed for use in the temperature range 300°C to 500°C. The material-dependent correction values k are used for determining the loads at real operating temperatures. To reach the expected temperatures, according to DIN EN 13480-3, Table 13.11.2–2 must be considered for the substructure.
Certification
Technical specifications
Max. temperature | 500 °C |
Friction coefficient µ static Pipe shoe foot (without sliding plate) / siFramo and siMotec | 0,3 |
Salt spray test | Resistance > 500 hours |
Material base body | steel |
Material connecting element | Torque/Nut Height adjustment: A4-80, Torque/Nut Pipe Clamp: A4-70 |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Installation
To guarantee that both sliding plates rest correctly, both webs must be adjusted to exactly the same height.
| Type | Height H as delivered [mm] | Height H Range [mm] |
|---|---|---|
| HV 200 | 200 | 171 - 223,5 |
Tightening torque screw connections
| Clamping bolts | Tightening torque [Nm] | Height adjustment | Tightening torque [Nm] |
|---|---|---|---|
| DN 200 | 50 | Bolts in the bar | 80 |
| DN 250 - 600 | 60 | Bolts in the bar | 80 |
