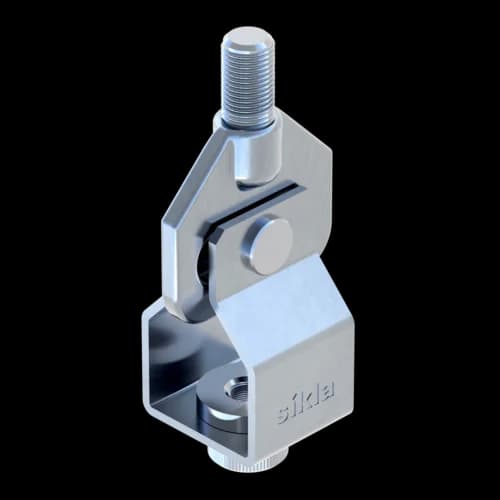

Slide Element GLE J
Group: 1343
Height-adjustable suspension slide element for all mechanical services
Can be fixed directly to the ceiling or to Sikla Channels for parallel pipe runs
Slide roller ensures smooth, jerk-free and silent sliding
Overview of Types
General Information

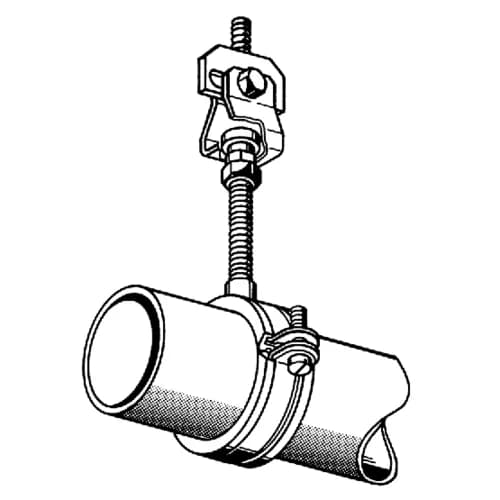

Height-adjustable suspension slide element for all mechanical services. Can be fixed as a single mounting element directly to the ceiling or, in case of parallel pipe runs, to Sikla Channels. The slide roller located in the suspended section provides for smooth, jerk-free and silent sliding.
Certification
Technical specifications
Sliding Friction μ | 0,15 |
Static Friction μ0 | 0,23 |
Material base body | steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
GLE J 8 | 3,50 kN |
GLE J 10 | 3,50 kN |
GLE J 12 | 6,00 kN |
GLE J 16 | 6,00 kN |
The load capacity of the connecting parts used is to be considered. This applies particularly under stress of fire.
Fire resistance
Type | FRP 30 | FRP 60 | FRP 90 | FRP 120 |
GLE J 8 | - | - | - | - |
GLE J 10 | 1,1 kN | 0,6 kN | 0,4 kN | 0,3 kN |
GLE J 12 | 1,3 kN | 1 kN | 0,5 kN | 0,3 kN |
GLE J 16 | 1,3 kN | 1 kN | 0,5 kN | 0,3 kN |
Software
This product is available in the following software.
Installation
The selected height is to be secured by means of a locking nut.
Maximum lateral deviation angle: 10°
Length of drop rod of threaded rod: No limitation
Maximum sliding distance: 25 mm
Maximum height adjustment: 15 mm
