Duo Clamp SRS 2G mE

Overview of Types

Info	Type	Size min.	Size max.	Weight	Quantity	Part number
	SRS 2G ME 25- 28	25.00 mm	28.00 mm	0.065 kg/pcs.	100 pcs.	159395

	SRS 2G ME 48- 52	48.00 mm	52.00 mm	0.099 kg/pcs.	50 pcs.	159623

	SRS 2G ME 60- 64	60.00 mm	64.00 mm	0.111 kg/pcs.	50 pcs.	159632

	SRS 2G ME 73- 80	73.00 mm	80.00 mm	0.196 kg/pcs.	25 pcs.	159641

	SRS 2G ME 86- 91	86.00 mm	91.00 mm	0.215 kg/pcs.	25 pcs.	159650

	SRS 2G ME 110-115	110.00 mm	115.00 mm	0.301 kg/pcs.	25 pcs.	159669

General Information

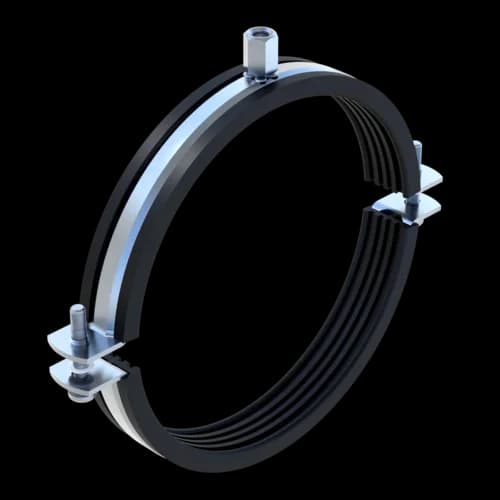

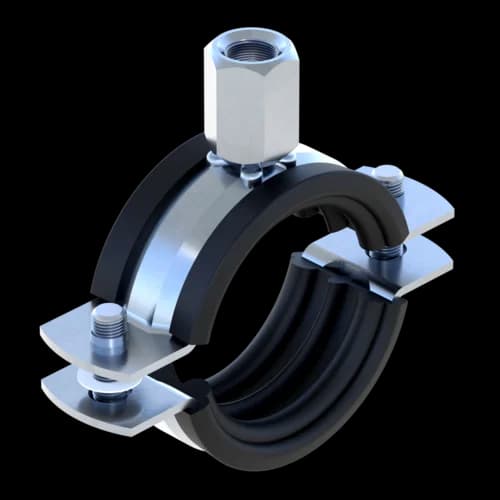

Two-piece pipe clamp with double thread connection (M8/M10) and sound absorption lining for the installation of pipelines. Applicable for sound-absorbed installations according to DIN 4109 specifications.

Certification

Technical specifications

Material base body	steel
Material insulation body	SBR/EPDM
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Load range

Type	-V_Z,perm.
SRS 2G ME 25- 28	0,46 kN
SRS 2G ME 48- 52	0,46 kN
SRS 2G ME 60- 64	0,46 kN
SRS 2G ME 73- 80	0,90 kN
SRS 2G ME 86- 91	0,90 kN
SRS 2G ME 110-115	1,00 kN

Software

This product is available in the following software.

Installation

Tightening torque: 2 Nm
