MW S 60/30/90°
MW S 70/40/90°
MW S 90/60/90°
MW S 60/40/90°

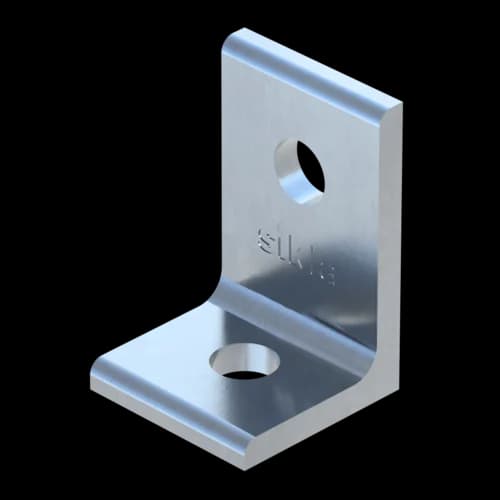

Fixing Bracket MW S
Group: 1326
Direct, lateral mounting to concrete or wooden beams and trusses
Connecting bracket for frame constructions made of profiles
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
MW S 60/30/90°
MW S 70/40/90°
MW S 90/60/90°
MW S 60/40/90°
Group: 1326
Direct, lateral mounting to concrete or wooden beams and trusses
Connecting bracket for frame constructions made of profiles
See supplementary document
PDF (124 KB)
Designed for general mounting purposes as a direct lateral attachment link integrated in binding and bridging beams of concrete or wood, and for similar applications. It may serve as a connecting bracket for framework structures consisting of channels. Sprinkler systems: See 'Technical Data'. Types 60/30/90 and 90/60/90 are designed for attachment of pipes to wooden truss according to VdS CEA-standard 15.2.2.
Certification
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Type | VZ,perm. |
MW S 60/40/90° | 7,50 kN |
MW S 90/60/90° | 7,50 kN |
Software
This product is available in the following software.
Info | Type | Weight | Quantity | Part number | |
| MW S 60/40/90° | 0.162 kg/pcs. | 25 pcs. | 115399 | ||
| MW S 90/60/90° | 0.264 kg/pcs. | 25 pcs. | 114820 | ||
