Fixing Bracket MW 90/90/45° HCP
Group: 1826
Part number 162045
Suitable for Sikla Channels MS 41
Useful addition to support brackets for integration in crossbars and other structures made of hot-dipped galvanised channels

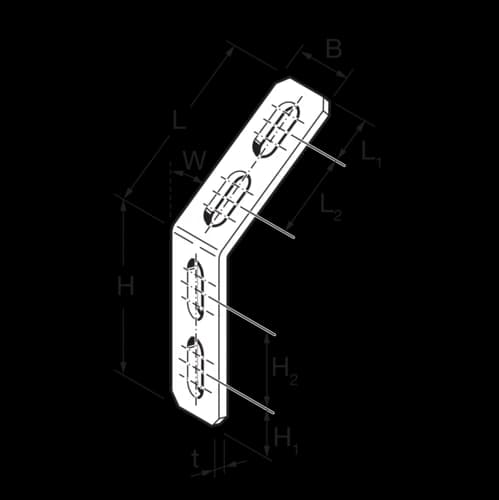

Technical Data
B | 40 mm |
H | 90 mm |
H1 | 25.75 mm |
H2 | 40 mm |
L | 90 mm |
L1 | 25.75 mm |
L2 | 40 mm |
t | 5 mm |
W | 45 ° |
Load range
VZ,perm. | 4,50 kN |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
