Pre-assembled connecting element for frame structures made of channels. Version W suitable for connections to wall, floor or ceiling. High-speed assembly system for 90°- and 45°-structures of Channels MS 41. Locks automatically by pushing down the bolt head and at the same time supports its own weight. Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping and high-strength material for high stiffness.

Pre-assembled connecting element for frame structures made of channels. Version W suitable for connections to wall, floor or ceiling. High-speed assembly system for 90°- and 45°-structures of Channels MS 41. Locks automatically by pushing down the bolt head and at the same time supports its own weight. Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping and high-strength material for high stiffness.

By using the collar drill, a sufficiently deep, compliant and uniform borehole depth is achieved.

By using the collar drill, a sufficiently deep, compliant and uniform borehole depth is achieved.

By using the collar drill, a sufficiently deep, compliant and uniform borehole depth is achieved.

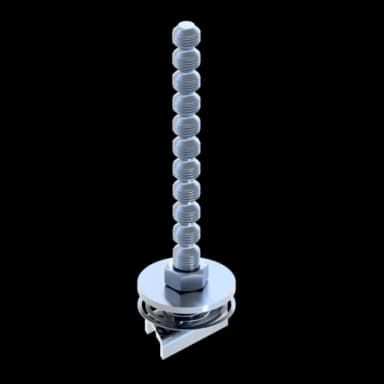

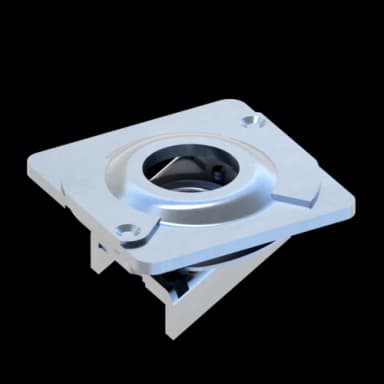

Quick-installation element for efficient mounting of pipe clamps and other components to Channels MS 27. Time-saving due to a pre-assembled Blockset consisting of 4 individual parts. Easy height adjustment within the channel. Retains position in horizontal and vertical channels during locational adjustment. But still can be moved easily and freely along the channel as required. Grooved rod, prevents unintended unscrewing. Easy cutting of the grooved rod - cutting grooves every 10 mm using Rod Cutter PBC 1.

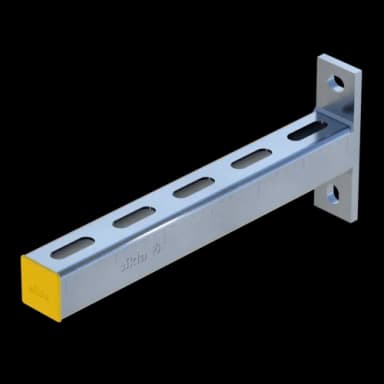

Recommended for single-armed wall suspension or fixing to other building structures.

Recommended for single-armed wall suspension or fixing to other building structures. Also available as a double version.

Recommended for single-armed wall suspension or fixing to other building structures. Also available as a double version.

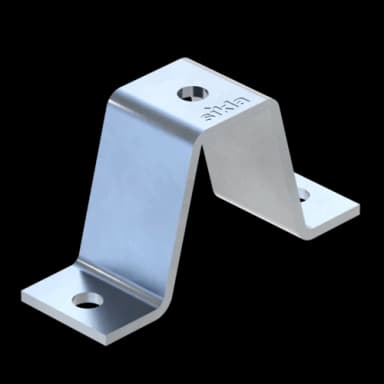

For fixing Sikla Channels: directly to the building structure or directly onto other channels for frame assembly. When mounting the Channel Holder onto freestanding or embedded channels, we recommend the use of Speed Nut CC bolts.

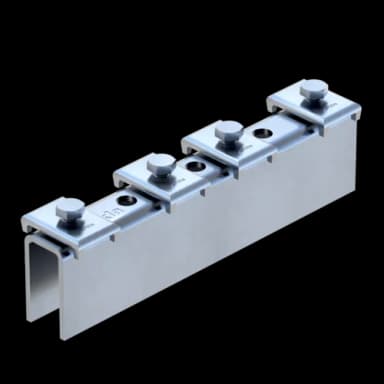

Channel Connector for easy and safe extension or joining of Sikla Channels on site or for pre-assembly in workshops.

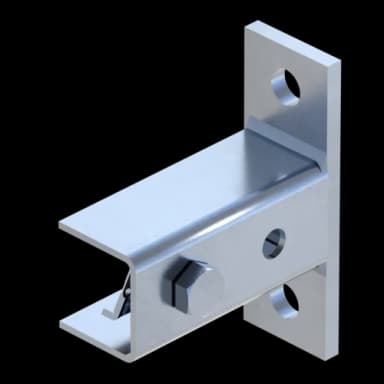

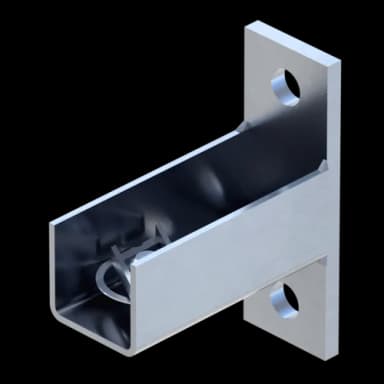

To be used for installing crossbars between two Channels MS 27 or as base unit for projecting channels. Note: When assembling version MH as cantilever, consider sufficient bracing of the channel. In case of tension load F _z at channel slot, screws must be displaced.

To be used for installing crossbars between two Channels MS 27 or as base unit for projecting channels. Note: When assembling version MH as cantilever, consider sufficient bracing of the channel. In case of tension load F _z at channel slot, screws must be displaced.

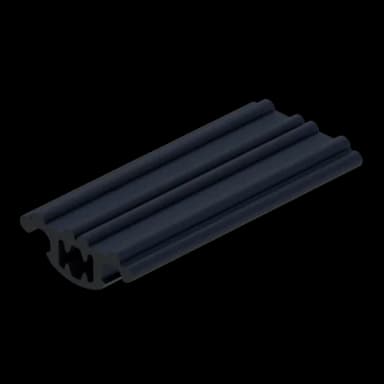

Sound Absorption Lining for inserting into Sikla Channels or fitting around threaded rods; mainly for use in ducting systems, also for sound proof installations as per DIN 4109.

Element for easily and efficiently pre-assembling crossbars, wall brackets and support structures on site or in workshops. All products within the Pressix CC 27 range are compatible with Channel MS 27.

Element for easily and efficiently pre-assembling crossbars, wall brackets and supporting structures on construction sites or in workshops.

For simple and professional production of crossbars, wall brackets and support frames on the construction site or for pre-assembly. The stainless steel Channel 41 rails are suitable as guide and support rails for the 41 VA sliding piece. In addition, all CC components in stainless steel can be used with this channel.

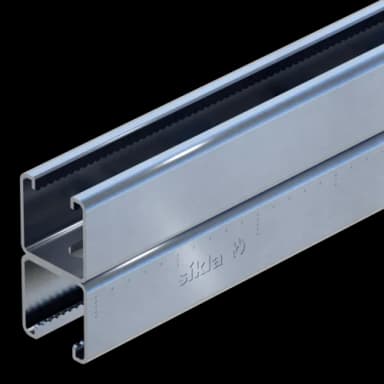

The Channel MS 41 D is a versatile element for technical building equipment and industrial plant construction. It is ideal for simple and professional manufacturing of crossbars, wall brackets and support frames. The internal serration and the possibility of combining it with siConnect system components such as the Slide Element GS 41, the Beam Clamp TCS 1, the T-Head Bolt TBO HZ and all other Sikla CC components, offer maximum flexibility during installation. The MS 41 D is available in various designs, for example as a trapezoidal channel for higher loads.

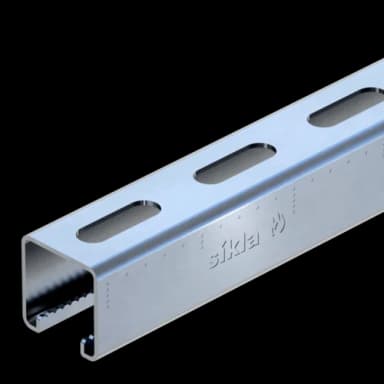

The Channel MS 41 is a versatile fastening element for technical building equipment and industrial plant construction. It is ideal for the simple and professional manufacturing of crossbars, wall brackets and support frames – both directly on the construction site and for pre-assembly. The internal serration and the possibility of combining it with siConnect system components such as the Slide Element GS 41, the Beam Clamp TCS 1, the T-Head Bolt TBO HZ and all other Sikla CC components, it offers maximum flexibility during installation. The MS 41 is available in various designs, for example as a trapezoidal rail for higher loads.

Channel Nut HZ 41 A4 suitable for Channels MS 41 ss.

Channel Nut HZ 41 HCP suitable for Channels MS 41 HCP.

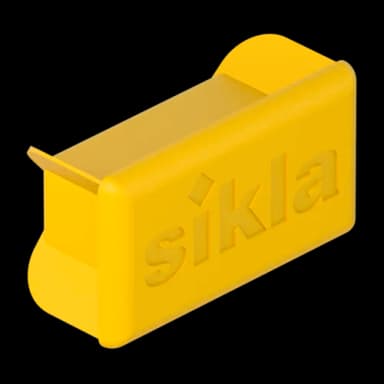

End Cap for clean finish at the end of Sikla Channel MS 27.

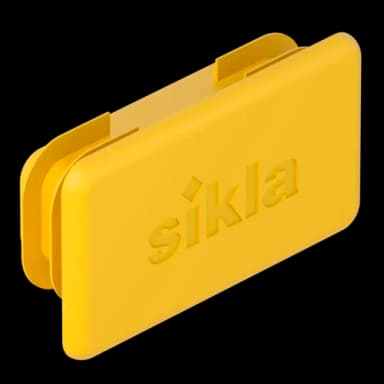

End Cap for clean finish at the end of Sikla Channel MS. Double channels require 2 End Caps.

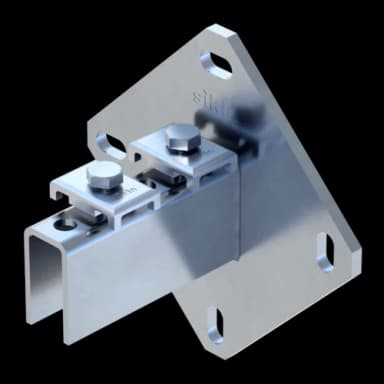

In combination with a Sikla Channel MS 41, End Support WBD is particularly suitable for setting up support structures attached to walls, floors and ceilings as a base for frame structures made of Sikla Channels. The generous dimensions and the diamond shape of the mounting plate provide a high bending moment and safely stabilise lateral loads.
