Overview of Types
General Information

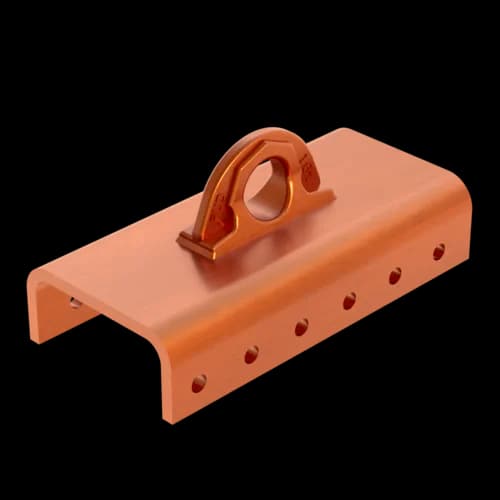

Element for lifting siFramo skids with TP F100 beam sections using a lifting tool (e.g. crane). Indestructible construction for repeated lifting operations in multiple projects.
Certification
Technical specifications
Material base body | steel |
Corossion class | C2 |
Load range
Type | Vmax α = 0° | Vmax α = 0° - 45° | Vmax α = 45° - 60° |
KLA F100 | 16,00 kN | 11,00 kN | 8,00 kN |
Software
This product is available in the following software.
