Group: 1102

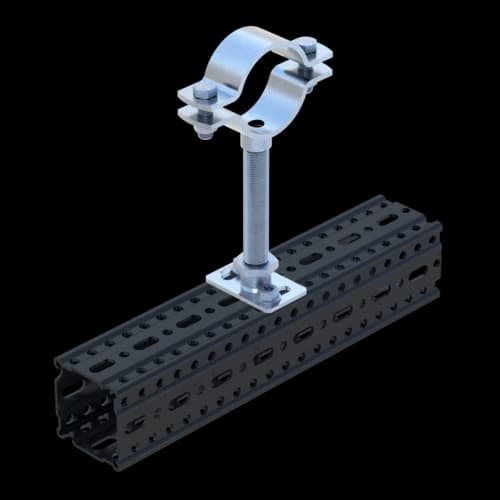

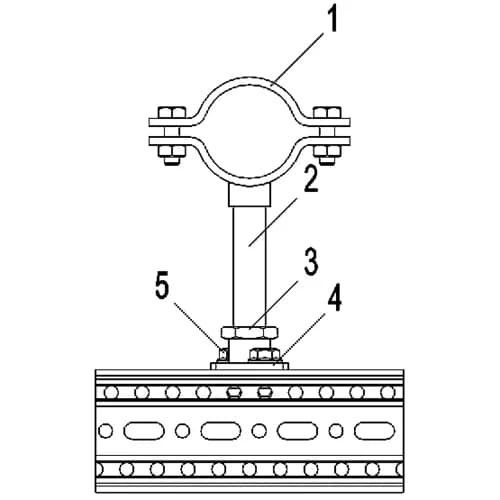

Contains components for a permanent pipe connection with heavy pipe clamp Stabil I-1/2'
Designed for use with Beam Section TP F 80, connected via Self Forming Screw FLS F
Height adjustment via Threaded Tube 1/2'
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
Info | Type | Size min. | Size max. | DN | Weight | Quantity | Part number |
An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2'. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'.
Certification
Primary element material | steel |
Connecting element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
