In combination with Sikla Channels MS 41/41, End Support WBD is ideal for setting up support structures attached to walls, floors and ceilings and for direct fixing to steel beams. In combination with Joining Plate AP, a fixing to beams with flange width > 120 mm is possible.

Suitable for Sikla Channel System 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of channels with a width of 41 mm.

Useful addition to Support Brackets for integration in crossbars and other structures composed of stainless steel channels.

Suitable for Sikla Channels MS 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of hot-dipped galvanised channels.

Suitable for Sikla Channel System 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of channels with a width of 41 mm.

Useful addition to Support Brackets for integration in crossbars and other structures composed of stainless steel channels.

Suitable for Sikla Channels MS 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of hot-dipped galvanised channels.

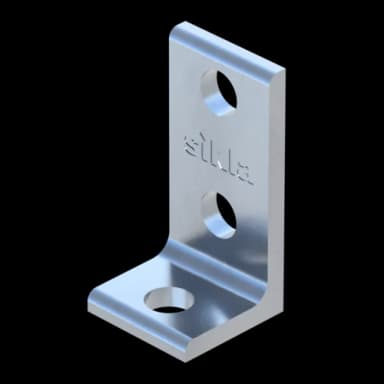

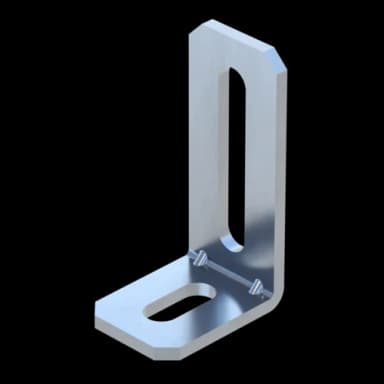

Suitable for Sikla Channel System 41. Fixing Bracket with wide adjusting range for construction of cross bars and other structures composed of channels.

Designed for general mounting purposes as a direct lateral attachment link integrated in binding and bridging beams of concrete or wood, and for similar applications. It may serve as a connecting bracket for framework structures consisting of channels. Sprinkler systems: See 'Technical Data'. Types 60/30/90 and 90/60/90 are designed for attachment of pipes to wooden truss according to VdS CEA-standard 15.2.2.

Designed for general mounting purposes as a direct lateral attachment link integrated in binding and bridging beams of concrete or wood, and for similar applications. It may serve as a connecting bracket for framework structures consisting of channels.

Pre-assembled connecting element, specifically for frame constructions made of channel. Optimised connection technology, e.g. for creating a T-connection with the Sikla MS 41 system. Locks automatically when being put in place, and supports its own weight. Secure, form-locking, non-positive connection. Completely pre-assembled with serrated CC nut and clamping screw M10. High stiffness.

Pre-assembled connecting element, specifically for frame constructions made of channel. Optimised connection technology, e.g. for creating a T-connection or V-stuts with the Sikla MS 41 system. Locks automatically when being put in place, and supports its own weight. Secure, form-locking, non-positive connection. Completely pre-assembled with serrated CC nut and clamping screw M10. High stiffness.

Safety element for Sikla Channels to be used instead of simple washers. The Holding Bracket prevents the edges along the opening of the channels from bending, and ensures optimum load distribution. When loads are imposed along the Channels, Holding Brackets HK 41 provide for additional safety due to embossed teeth, which penetrate the channel. Suitable for single and double channels. Special blanking guarantee high safety and shear forces after reaching form closure, especially for bolted through connecting elements.

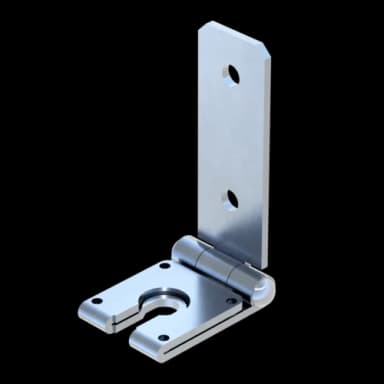

The Joint JOI R is used for bracing of channel installations which are of central importance to seismic support of services. Due to its keyhole shaped design the joint can be retrofitted. For installing directly to Channel 41 the four pins and two fixing points guarantee a reliable rotation lock. Brackets can be stacked for bracing longitudinally and transversely. The rotation lock for the installation to an existing structure depends on the already used components. In case of the application of a Block PB 41 a rotation lock is given. In case of the application of a Holding Bracket or a Washer a rotation lock is only partly given.

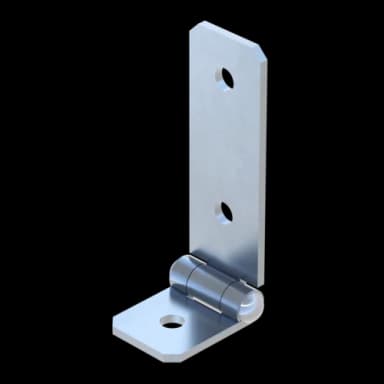

To connect Channels 41 to the building structure if an arbitrary, continuous angle adjustment up to 180° is necessary. The Joint JOI S is especially used for the connection to the structure. The two fixing points to channel ensure a rotation lock, so lateral forces can be compensated.

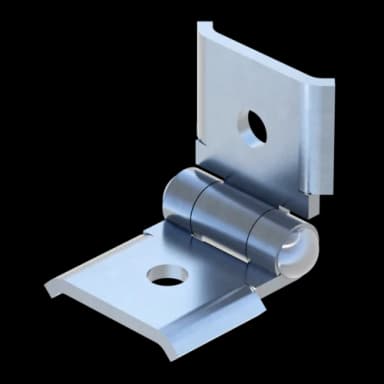

To be used for connecting Channels MS 41 to optionally bended structures such as tunnels, bended roof frames etc. under different angles. Especially suitable as brace support. Arrangement of the channel opening to all directions is possible.

For connecting Channels MS 41 allowing for variable angle-adjustment ranging from 0° - 180°. Suitable for direct connection to the building structure and, in combination with channel, can be used as an angular support for bracketry.

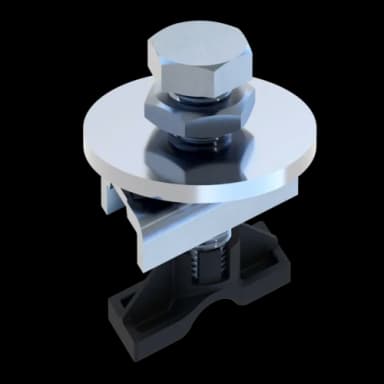

For additional increase in stability under seismic impact and prevention of bending under pressure stress on the threaded rod.

In particular useful for installation in vertical channels or where access is difficult. Further advantages: Can be used in the Sikla Channels MS 27, independent of the channel's height. No getting stuck on bolt heads when sliding in the channel. No appearance of settlement after tightening.

In particular useful when installing in vertical channels or in places of difficult access. Further advantages: for all Sikla Channels MS 41, independent of the height of the channel, no getting stuck on bolt heads when sliding in the channel, no appearance of settlement after tightening.

In particular useful for installation in vertical channels or where access is difficult. Further advantages: Can be used in all stainless steel Sikla Channels of 27mm width, independent of the channel's height. No getting stuck on bolt heads when sliding in the channel. No appearance of settlement after tightening.

In particular useful for installation in vertical channels or where access is difficult. Further advantages: Can be used in all Sikla Channels of 27mm width, independent of the channel's height. No getting stuck on bolt heads when sliding in the channel. No appearance of settlement after tightening. The HCP coating meets special corrosion protection requirements.

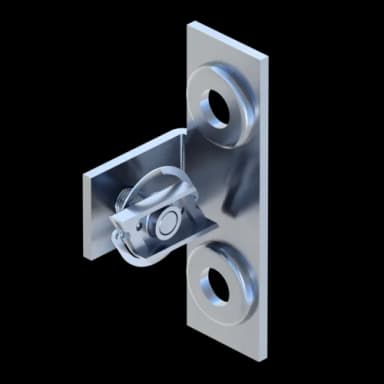

Used for installing crossbars between Channels MS 27 or building structures. Note: Each crossbar requires two T Brackets.

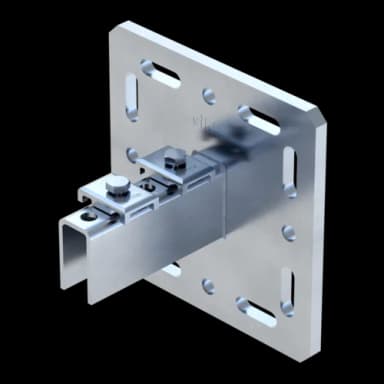

To be used with Channels MS 41 HCP.
