From DN 100

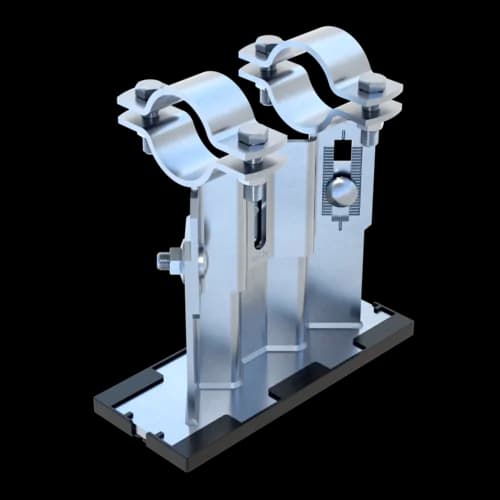

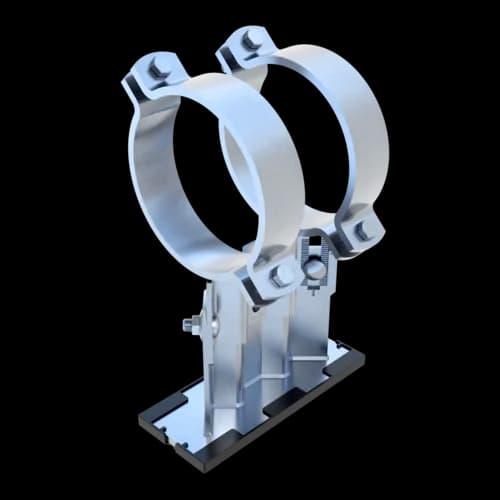

Pipe Shoe LC-HV 200 HCP

Group: A732

Height-adjustable Pipe Shoe, heightadjustment in steps of 2.5mm, delivery height of 200 mm - suitable for sliding pipe supports

Suitable for steel beams, with a minimum flange width of 80 mm

Flexible in combination with other Sikla components to create guide or fixed points.

Select a Type

Overview of Types
General Information
Installation
Documents

Overview of Types

General Information

Height-adjustable, double-clamp pipe shoe with a delivery height of 200 mm. Height adjustment in steps of 2.5 mm. Particularly suitable for sliding pipe supports on suitable surfaces. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created in combination with other Sikla components.

Certification

Technical specifications

Max. temperature	300 °C
Min. temperature	-20 °C
max. temperature sliding element	130 °C
min. temperature sliding element	-20 °C

Friction coefficient µ static Pipe shoe foot (without sliding plate) / siFramo and siMotec	0,3
Friction coefficient µ static Pipe shoe foot (with sliding plate) / siFramo and siMotec	0,2

Material base body	steel
Material sliding element	PA 6.0
Surface	HCP
Corossion class	C4

Also available with DUALSHIELD for high corrosion protection within C5H environments. Delivery time on request - Made-to-order goods.

Software

This product is available in the following software.

Installation

Type	Height H as delivered [mm]	Height H Range [mm]
HV 200	200	171 - 223,5

Tightening torque screw connections

Clamping bolts	Tightening torque [Nm]	Height adjustment	Tightening torque [Nm]
DN 15 - 40	40	Bolts in the bar	80
DN 50 - 200	50	Bolts in the bar	80
DN 250 - 300	60	Bolts in the bar	80

Documents

Brochures

Sikla Pipe Supports - Comprehensive Solutions for Secure and Efficient Installations
PDF (5.52MB)

Datasheets

Pipe Shoes LC-HV Type Overview
PDF (0.19MB)

Datasheets / Loads

Load Capacities for Pipe Supports LC HV - Sikla Technical Data
PDF (0.26MB)
